Air Release Valve Double Orifice Ductile Iron Pn16

Air Release Valve Double Orifice Ductile Iron Pn16

1. Design according to EN 1074-4:2000

2. Flange according to EN 1074-2:1997

3. Testing according to EN 12266-1:2012

Working pressure : 16kg/cm3

Shell test pressure : 25kg/cm3

Seat test pressure : 18kg/cm3

4. medium :  water , neutral oil

5. inside and outside expoy coating : 100% fusion-bonded epoxy

6. SS304 / SS316 bolts / nuts /washers are avaliable on request

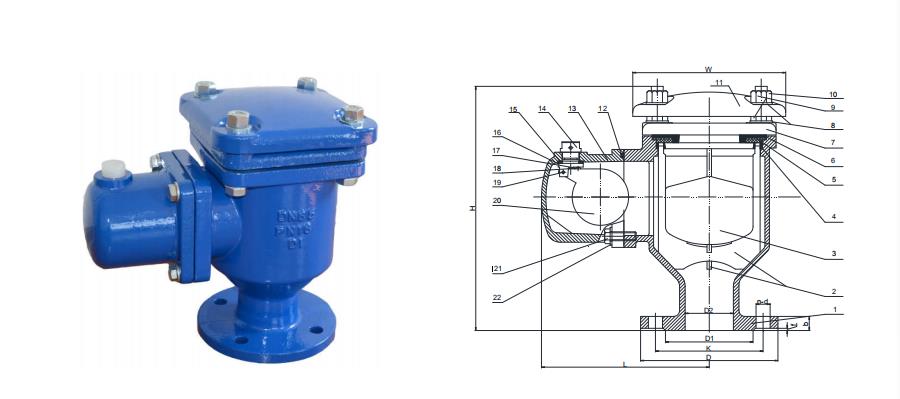

1.body : ductile iron ; 2. Float Guide : ABS ; 3. Float : ABS ; 4. Support : ABS ; 5. Seat Ring : EPDM ;

6. Seat support : ABS ; 7. Cover : ductile iron ; 8. washer : carbon steel / stainless steel ;

Quality Control
1. 100% Inspection before shipment.

2. Sending you the cargo pictures with details include marking, packing, testing to you together with test report .
3 . 18 months quality Guarantee.

Trade Terms:

1. Payment term: T/T 30% deposit after order confirmed, the balance before Shipment.  L/C acceptable / Negotiable .
2. Lead time: normally within a month after deposit received .
3. Sample policy: Free samples will be offered for customer's evaluation and the express fee should be paid by customer .
4. Shipping port: Tianjin / Shanghai/ Qingdao/other port , china .
5. Discounts: We offer discount for big quantity.

Our Services:
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours. And 24 hours Available for Any urgent Communication
2.We offer OEM services .

3.We can manufacture API, DIN, GOST, JIS , BS , GB standards for different pressure & temperature & size according to customer requirements .

4. Free Replacement for Any Product with Error.
5. Delivery in time, we will pay penalty for any delay of the shipment.

If you want to know more about our products, please contact freely. We will patiently answer your all questions.
