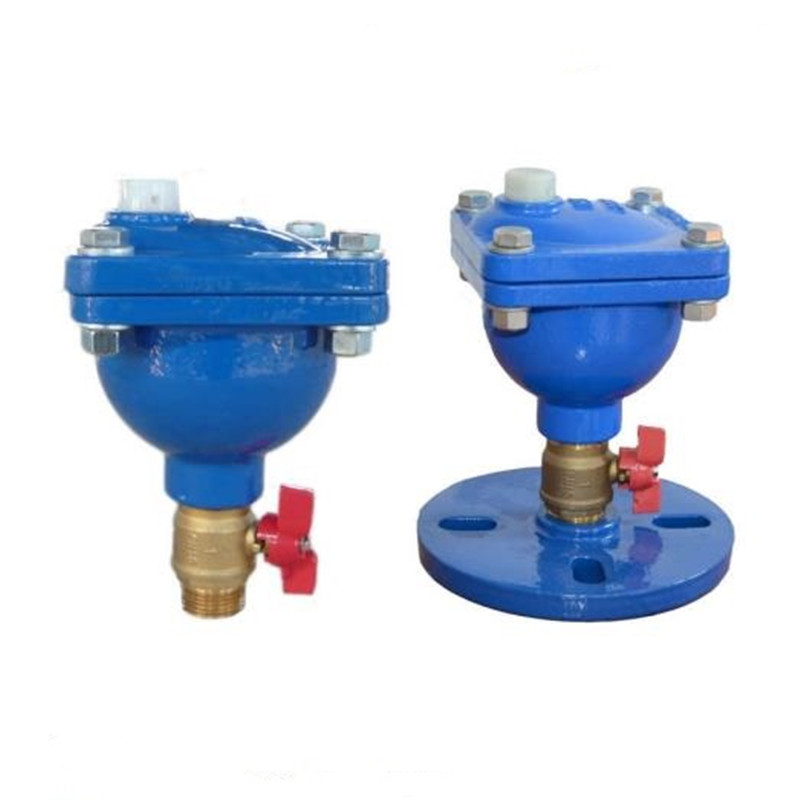

Air Release Valve Thread Single Orifice Pn16

Air Valve PN16 Thread Single Sphere
Availability:
Quantity:

Air Release Valve Thread Single Orifice Pn16

1. Design according to EN 1074-4:2000

2. Flange according to EN 1092-2:1997

3. Testing according to EN 12266-1:2012

Working pressure : 16kg/cm3

Shell test pressure : 25kg/cm3

Seat test pressure : 18kg/cm3

4. medium :  water , neutral oil

5. inside and outside expoy coating : 100% fusion-bonded epoxy

6. SS304 / SS316 bolts / nuts /washers are avaliable on request

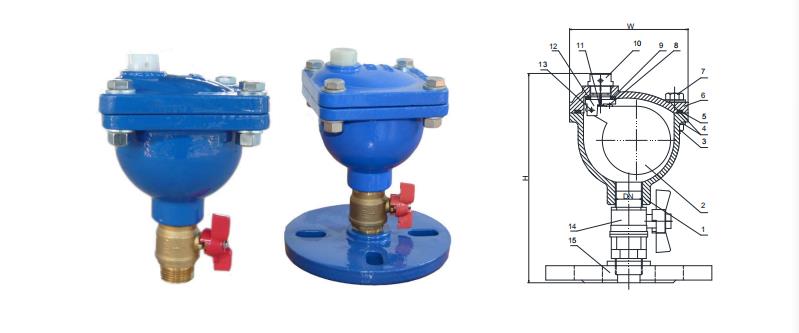

single ball air valve 1_副本1

1.body : ductile iron ; 2. Float : ABS ; 3. Nut : carbon steel  ; 4.  washer : carbon steel ; 5. O-ring : EPDM ;

6. Cover : ductile iron ; 7. bolt : carbon steel ; 8. adjusting screw : stainless steel ; 9. gasket : EPDM ; 10.  Cap : Nylon/Brass ; 11 .Seat : EPDM ; 12. Bracket : Nylon ; 13. Hinge Pin : Stainless steel ; 14. Isolation valve : brass


Quality Control
1. 100% Inspection before shipment.

2. Sending you the cargo pictures with details include marking, packing, testing to you together with test report .
3 . 18 months quality Guarantee.


Trade Terms:

1. Payment term: T/T 30% deposit after order confirmed, the balance before Shipment.  L/C acceptable / Negotiable .
2. Lead time: normally within a month after deposit received .
3. Sample policy: Free samples will be offered for customer's evaluation and the express fee should be paid by customer .
4. Shipping port: Tianjin / Shanghai/ Qingdao/other port , china .
5. Discounts: We offer discount for big quantity.


Our Services:
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours. And 24 hours Available for Any urgent Communication
2.We offer OEM services .

3.We can manufacture API, DIN, GOST, JIS , BS , GB standards for different pressure & temperature & size according to customer requirements .

4. Free Replacement for Any Product with Error.
5. Delivery in time, we will pay penalty for any delay of the shipment.



If you want to know more about our products, please contact freely. We will patiently answer your all questions.
