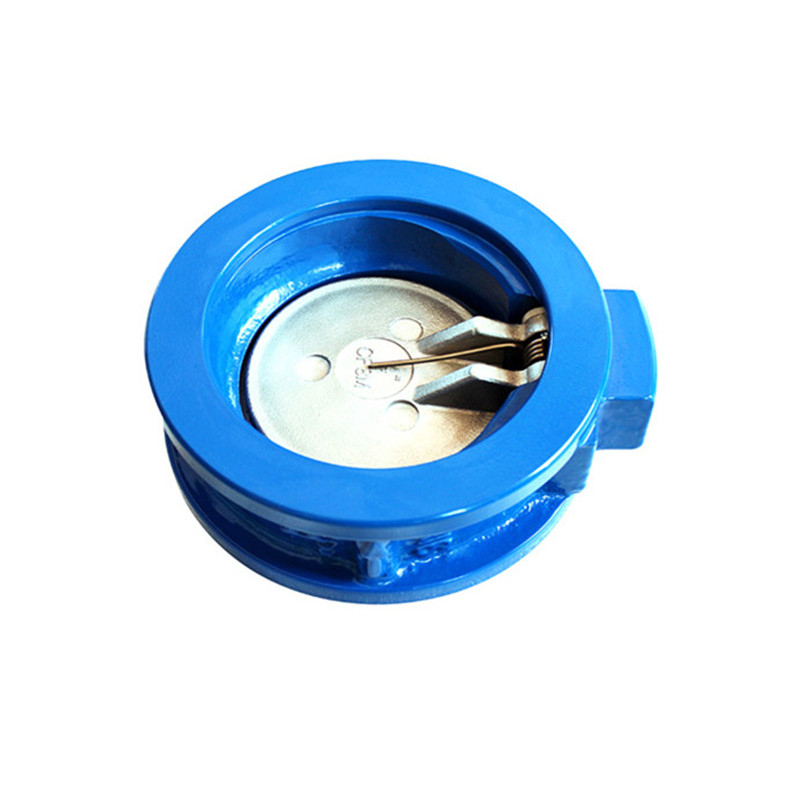

Wafer Check Valve Cast Iron Pn16 Single Disc Swing

Wafer type single disc swing check valve PN16
Availability:
Quantity:
  • H74X

  • PG-VAL

 Wafer Check Valve Cast Iron Pn16 Single Disc Swing


Single disc swing check valve(cast iron)



DESCRIPTION

1. Flange according to EN1092-2 PN10/16


2. Face to face according to ANSI 125/150


3. Mounting between flanges


4. Working position: horizontal and vertical


5. Low head loss


6. Stainless steel spring technology to avoid fluid hammer


7. Working pressure: 1.0Mpa/1.6Mpa


8. Pressure test according to standards: API598 DIN3230 EN12266-1



9. Working temperature:

NBR: 0℃~+80℃

EPDM: -10℃~+120℃



10. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.
